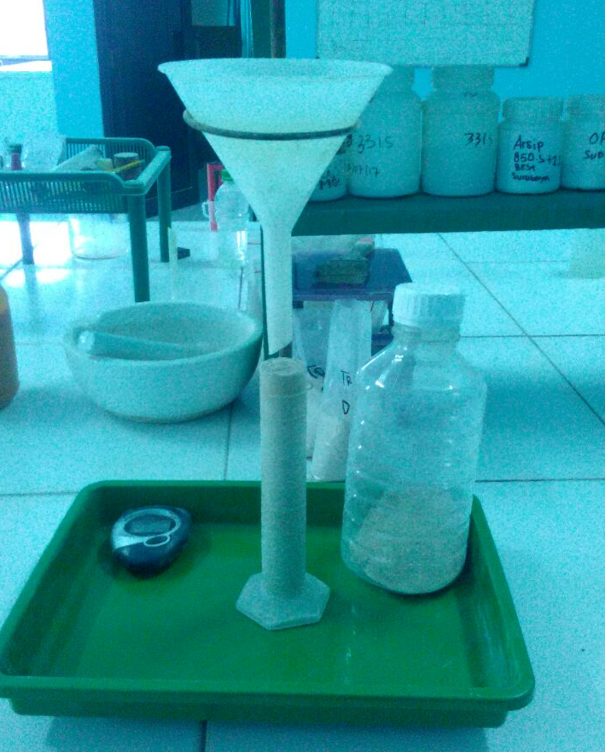

Bulk Density Testing Method
[/av_textblock]
[av_hr class=’short’ height=’70’ shadow=’no-shadow’ position=’center’ custom_border=’av-border-thin’ custom_width=’50px’ custom_border_color=” custom_margin_top=’30px’ custom_margin_bottom=’30px’ icon_select=’yes’ custom_icon_color=” icon=’ue808′ font=’entypo-fontello’ av_uid=’av-27num’ admin_preview_bg=”]
[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-5zuc1q’ admin_preview_bg=”]
TOOLS
- Standing Clamp + Funnel
- 100cc Plastic Measuring Cup
- Scales with Analytic Accuracy of 0.1 gr
- 500cc Bottle
- Stopwatch
PROCEDURE
- Measure empty 100cc measuring cup, zero scale.
- Pour bleaching earth sample of 200 grams approximately into 500cc bottle, shake until the sample mixed with air.
- Pour the be into measuring cup through funnel, when the measuring cup is full, press the stopwatch, set the time for 1 minute, add if decreases. When the time is up, swipe the surface and weigh.
- BD= the weight of powder without containment/100 (gr/cc)
[/av_textblock]
[/av_three_fifth][/av_section][av_section min_height=” min_height_px=’500px’ padding=’default’ shadow=’no-shadow’ bottom_border=’no-border-styling’ bottom_border_diagonal_color=’#333333′ bottom_border_diagonal_direction=” bottom_border_style=” custom_arrow_bg=” id=” color=’main_color’ background=’bg_color’ custom_bg=” background_gradient_color1=” background_gradient_color2=” background_gradient_direction=’vertical’ src=” attachment=” attachment_size=” attach=’scroll’ position=’top left’ repeat=’no-repeat’ video=” video_ratio=’16:9′ overlay_opacity=’0.5′ overlay_color=” overlay_pattern=” overlay_custom_pattern=” av_element_hidden_in_editor=’0′ av_uid=’av-p3v5a’]
[av_two_fifth first av_uid=’av-6xvlm6′]
[av_image src=’https://terramchemical.com/wp-content/uploads/2018/06/Picture4.png’ attachment=’3396′ attachment_size=’full’ align=’center’ styling=” hover=” link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ copyright=” animation=’no-animation’ av_uid=’av-jiv80wq9′ admin_preview_bg=”][/av_image]
[/av_two_fifth][av_three_fifth av_uid=’av-nbl3q’]
[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-6auczq’ admin_preview_bg=”]

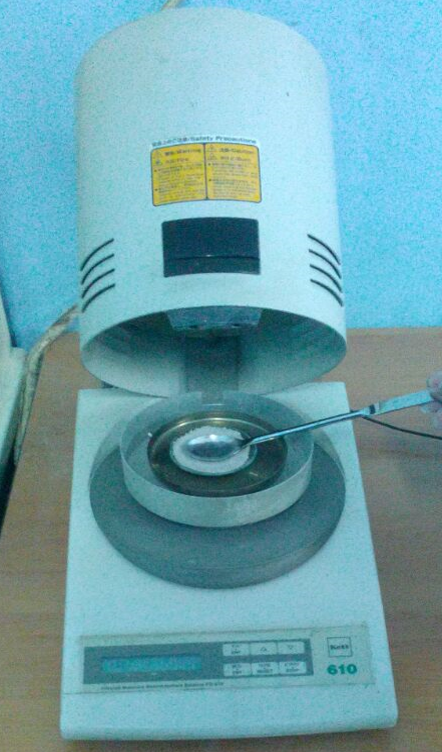

Moisture Content Testing Method
[/av_textblock]
[av_hr class=’short’ height=’70’ shadow=’no-shadow’ position=’center’ custom_border=’av-border-thin’ custom_width=’50px’ custom_border_color=” custom_margin_top=’30px’ custom_margin_bottom=’30px’ icon_select=’yes’ custom_icon_color=” icon=’ue808′ font=’entypo-fontello’ av_uid=’av-27num’ admin_preview_bg=”]
[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-5zuc1q’ admin_preview_bg=”]
TOOLS
- Moisture Analyzer with Accuracy of 0.01 gr
- Spatula Spoon
PROCEDURE
- Set moisture analyzer temperature into 120 ºC, stop mode = auto stop.
- Open cover and zero along with the containment.
- Place 4-5 gr of sample.
- Close the cover and press start.
When the drying is finished, the result will be shown.
[/av_textblock]
[/av_three_fifth]
[/av_section]
[av_section min_height=” min_height_px=’500px’ padding=’default’ shadow=’no-shadow’ bottom_border=’no-border-styling’ bottom_border_diagonal_color=’#333333′ bottom_border_diagonal_direction=” bottom_border_style=” custom_arrow_bg=” id=” color=’main_color’ background=’bg_color’ custom_bg=” background_gradient_color1=” background_gradient_color2=” background_gradient_direction=’vertical’ src=” attachment=” attachment_size=” attach=’scroll’ position=’top left’ repeat=’no-repeat’ video=” video_ratio=’16:9′ overlay_opacity=’0.5′ overlay_color=” overlay_pattern=” overlay_custom_pattern=” av_element_hidden_in_editor=’0′ av_uid=’av-p3v5a’]
[av_two_fifth first av_uid=’av-6xvlm6′]
[av_image src=’https://terramchemical.com/wp-content/uploads/2018/06/Picture5.png’ attachment=’3397′ attachment_size=’full’ align=’center’ styling=” hover=” link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ copyright=” animation=’no-animation’ av_uid=’av-jiv80wq9′ admin_preview_bg=”][/av_image]
[/av_two_fifth][av_three_fifth av_uid=’av-nbl3q’]
[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-6auczq’ admin_preview_bg=”]

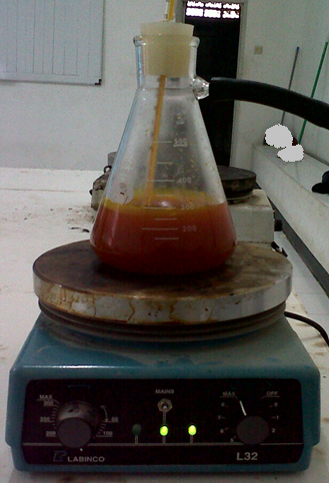

Absorption Power Testing Method
[/av_textblock]
[av_hr class=’short’ height=’70’ shadow=’no-shadow’ position=’center’ custom_border=’av-border-thin’ custom_width=’50px’ custom_border_color=” custom_margin_top=’30px’ custom_margin_bottom=’30px’ icon_select=’yes’ custom_icon_color=” icon=’ue808′ font=’entypo-fontello’ av_uid=’av-27num’ admin_preview_bg=”]
[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-5zuc1q’ admin_preview_bg=”]
TOOLS
- Scales with Accuracy of 0.01 gr & 0,001 gr
- 250cc Erlenmeyer Flask, Connect Vacuum Pump
- Magnetic Heater Stirrer (250-300 RPM)
- Stopwatch
PROCEDURE
- Weigh 200 gr OF CPO/ 70 gr in Erlenmeyer, weigh the be pursuant to dosage.
- Turn on stirrer and set heater temp to 90-110 ºC, turn on vacuum pump (60 TOR)
- When the temp is 90 ºC, insert, INSERT H3PO4 C=85% 0,1CC (0.05%) set the time for 5 minutes, then insert bleaching earth, set the time for 30 minutes (Temp = 90-110 ºC)
Then do the filtering to see the color of RBPO.
[/av_textblock]
[/av_three_fifth][/av_section][av_section min_height=” min_height_px=’500px’ padding=’default’ shadow=’no-shadow’ bottom_border=’no-border-styling’ bottom_border_diagonal_color=’#333333′ bottom_border_diagonal_direction=” bottom_border_style=” custom_arrow_bg=” id=” color=’main_color’ background=’bg_color’ custom_bg=” background_gradient_color1=” background_gradient_color2=” background_gradient_direction=’vertical’ src=” attachment=” attachment_size=” attach=’scroll’ position=’top left’ repeat=’no-repeat’ video=” video_ratio=’16:9′ overlay_opacity=’0.5′ overlay_color=” overlay_pattern=” overlay_custom_pattern=” av_element_hidden_in_editor=’0′ av_uid=’av-p3v5a’]
[av_two_fifth first av_uid=’av-6xvlm6′]
[av_image src=’https://terramchemical.com/wp-content/uploads/2018/06/Picture6.png’ attachment=’3398′ attachment_size=’full’ align=’center’ styling=” hover=” link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ copyright=” animation=’no-animation’ av_uid=’av-jiv80wq9′ admin_preview_bg=”][/av_image]
[/av_two_fifth][av_three_fifth av_uid=’av-nbl3q’]
[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-6auczq’ admin_preview_bg=”]
Filtration Testing Method
[/av_textblock]
[av_hr class=’short’ height=’70’ shadow=’no-shadow’ position=’center’ custom_border=’av-border-thin’ custom_width=’50px’ custom_border_color=” custom_margin_top=’30px’ custom_margin_bottom=’30px’ icon_select=’yes’ custom_icon_color=” icon=’ue808′ font=’entypo-fontello’ av_uid=’av-27num’ admin_preview_bg=”]
[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-5zuc1q’ admin_preview_bg=”]
TOOLS
- Vacuum Funnel, Filter Paper SS595
- 250cc Erlenmeyer Flask, Connect Vacuum Pump
- Stopwatch
PROCEDURE
- Use 70 gr of CPO, and bleaching earth dosage OF 3% (Cake’s thickness is about 3mm, diameter is 42mm).
- Prepare the filtration tools and turn on the vacuum pump (740-750 mmHg).
- Pour CPO from bleaching process into funnel, shake before pouring so that there is no be sendiment.
- After the cake is formed, (Erlenmeyer volume = 40 cc), press the stopwatch and record the filtration time.
- The filtration time is the time required for 20 cc of CPO to pass the filtration media (BE thickness = 3 mm, diameter = 42 mm) at 90-110 ºC.
[/av_textblock]
[/av_three_fifth][/av_section][av_section min_height=” min_height_px=’500px’ padding=’default’ shadow=’no-shadow’ bottom_border=’no-border-styling’ bottom_border_diagonal_color=’#333333′ bottom_border_diagonal_direction=” bottom_border_style=” custom_arrow_bg=” id=” color=’main_color’ background=’bg_color’ custom_bg=” background_gradient_color1=” background_gradient_color2=” background_gradient_direction=’vertical’ src=” attachment=” attachment_size=” attach=’scroll’ position=’top left’ repeat=’no-repeat’ video=” video_ratio=’16:9′ overlay_opacity=’0.5′ overlay_color=” overlay_pattern=” overlay_custom_pattern=” av_element_hidden_in_editor=’0′ av_uid=’av-p3v5a’]
[av_two_fifth first av_uid=’av-6xvlm6′]
[av_image src=’https://terramchemical.com/wp-content/uploads/2018/06/Picture7.jpg’ attachment=’3399′ attachment_size=’full’ align=’center’ styling=” hover=” link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ copyright=” animation=’no-animation’ av_uid=’av-jiv80wq9′ admin_preview_bg=”][/av_image]
[/av_two_fifth][av_three_fifth av_uid=’av-nbl3q’]
[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-6auczq’ admin_preview_bg=”]

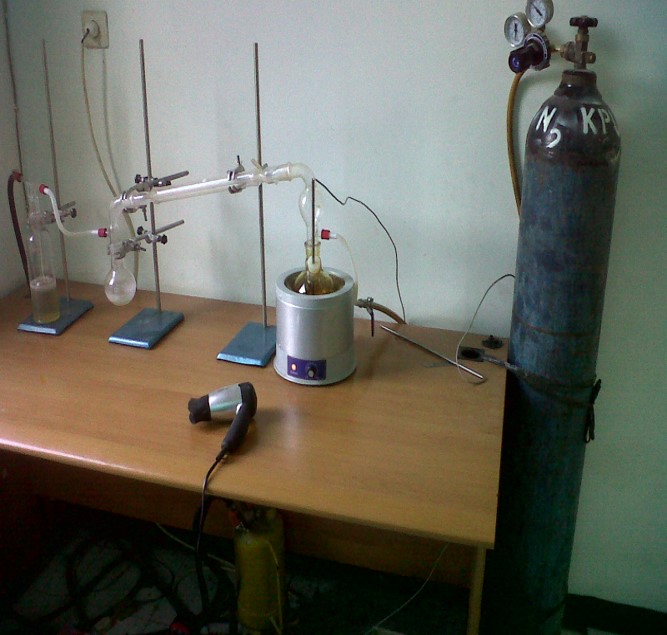

Deodorizing Testing Method
[/av_textblock]
[av_hr class=’short’ height=’70’ shadow=’no-shadow’ position=’center’ custom_border=’av-border-thin’ custom_width=’50px’ custom_border_color=” custom_margin_top=’30px’ custom_margin_bottom=’30px’ icon_select=’yes’ custom_icon_color=” icon=’ue808′ font=’entypo-fontello’ av_uid=’av-27num’ admin_preview_bg=”]
[av_textblock size=” font_color=” color=” av-medium-font-size=” av-small-font-size=” av-mini-font-size=” av_uid=’av-5zuc1q’ admin_preview_bg=”]
TOOLS
- Vacuum Distillation Set
- Vacuum Pump with Pressure Indicator
- Heater Mantel with Control
- Nitrogen
PROCEDURE
- CPO from bleaching process enters the distillation flask.
- Turn on the vacuum pump and check to make sure there is no leakage, the maximum pressure is 2 TOR.
- Open the nitrogen tap gradually and make sure the pressure is no more than 2 TOR (nitrogen serves to eliminate oxygen so there is no oxidation / scorch and as media to stir the CPO).
- Set control heater mantel deodorizing temperature to 260ºC and set the deodorizing time for 1 hour, then turn it on.
- When the desired temperature reached, the timer will calculate automatically and after the countdown finished, heater mantel will be turned off automatically.
- After the heater mantel is off, wait the temperature to decreaseinto below 50ºC then shut down the vacuum pump and close the nitrogent tap.
- Get the oil out of the flask and analyze the colour of RBDPO.
